1. wide viewing angle OLED display, an optional three languages
2. amplifier built-in MP3 and radio functions
3. with U disk data read interface
4. Support for external audio and microphone input
5. built-in 2.4G antenna receiver module
6. supports 100V emergency broadcast signal priority switching
7. supports all audio while playing, to merge
8. 2.4G wireless receiver maximum distance of 30 meters

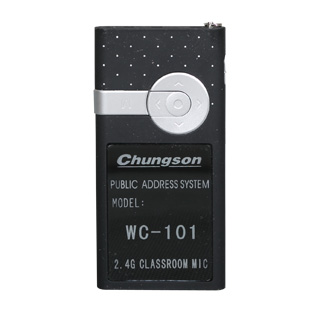

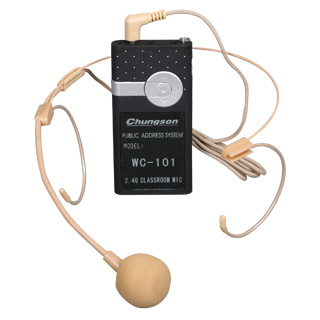

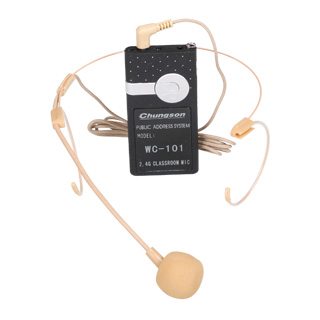

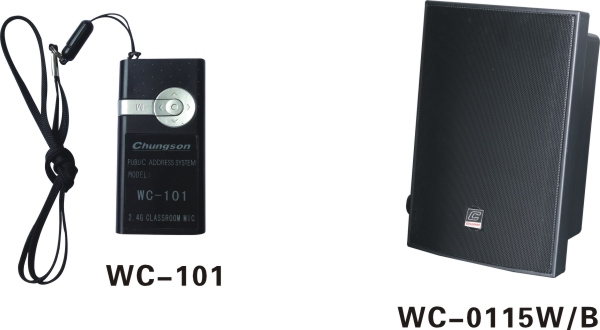

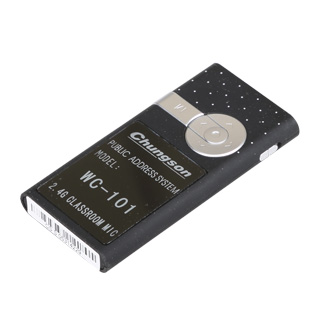

WC-101:
2.4G voice transmission microphone, built-in lithium battery, the maximum transmission distance of 30 meters, automatic frequency
WC-0115W / B:
2.4G voice reception main box, built-in 2.4G receiver module, two-way digital effects, independent sub-box output interface, 100V cut playing strong broadcast signal priority, low-power standby mode.

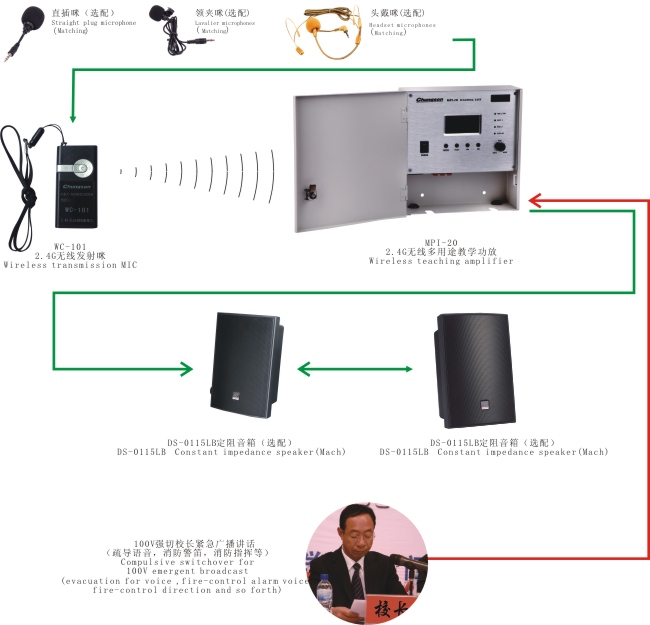

Wiring diagram:
连线图:
1.
2.
1. silver brushed aluminum panels, a strong antioxidant capacity
2. main chassis outside the door, to prevent the rest of the time it was operating
3. The wireless automatic frequency
4. supports linear simultaneous input
5. 2 channel microphone and wireless microphone while the output
6. 100V emergency broadcast signal switching output
7. stereo output, highlighting the effect
1. input source amplitude to the corresponding input port
2. Do not short-circuit output
3. Do not tap the display
4. Do not install in humid, high temperature place
