IP Network Broadcast Control Center is the core of the system. Adopt industrial chassis design, touch screen display control, built-in powerful Chungson IP network broadcast control server software, commonly used program material, large-capacity program source space, users can download or make recording programs according to their needs. Responsible for audio streaming on demand services, scheduled task processing, terminal management and rights management functions. Management program library resources for all network adapters to provide regular broadcast and real-time on-demand media services, in response to the request of each network adapter to play for each audio workstation data interface services.

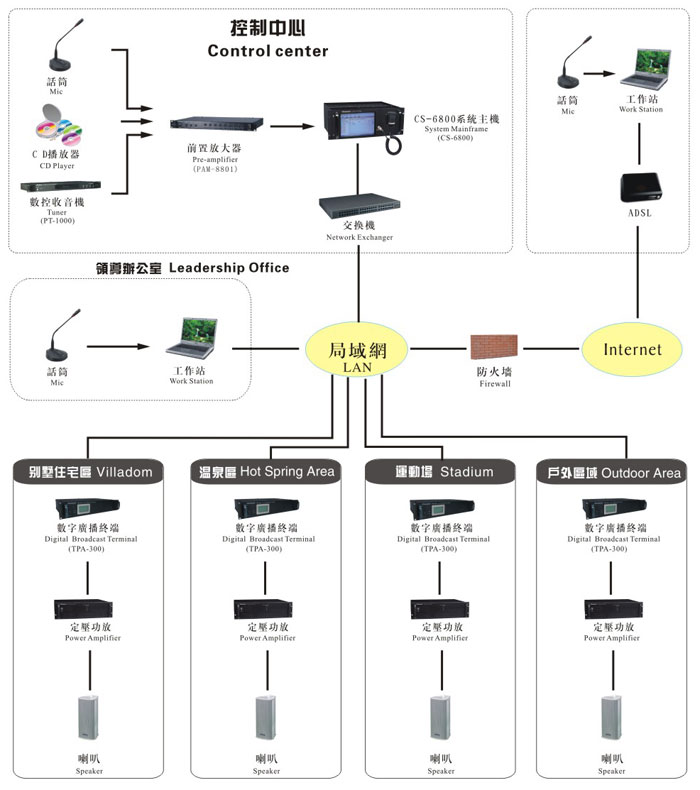

All digital transmission to the LAN or the Internet with independent IP as the main transmission medium to support a dedicated Fast Ethernet transmission, transmission distance is unlimited, and to achieve a multi-network integration. LAN equipped with the system of any workstation computer according to the size of the authority to broadcast the system to the system to add or delete programs.
Equipment model: CS-6800H
Screen: 15-inch IPS 32-bit true color LCD screen
Display: all Chinese menu display
Control mode: resistive touch screen
Standard interface: 2 × PS / 2 interface; 1 × serial port; 1 × parallel port;
1 × VGA; 3 × USB2.0; 1 × RJ45;
System audio signal distortion: 1KHz <0.5%
System audio signal standard input level: LINE: 300mV; MIC: 5mV
System audio signal standard output level: 0dBV
Working environment temperature: 5-35 ℃; Relative humidity: ≥75%; Pressure: 86-106Kpa
System software: built Chungson IP network broadcasting software, music library
Net weight: 11.5Kg
Body size: 483X320X180mm
Packing size: 635X428X253mm
◆ Easy operation touch screen display
◆ powerful automatic / manual real-time operation function
◆ software platform: WINDOWS98 / 2000 / XP / 2003/7
◆ support a variety of music player format
◆ large capacity music library storage function, programmable timer output, with cycle function
◆ fire alarm automatically cut the radio, the area automatically identified
◆ Can set up a number of sub-control stations, remote control and remote paging
