CS-6260 with six partitions, with MP3 combined amplifier--Zhongshan Chungson Public Broadcasting Equipment Industry Co., Ltd.

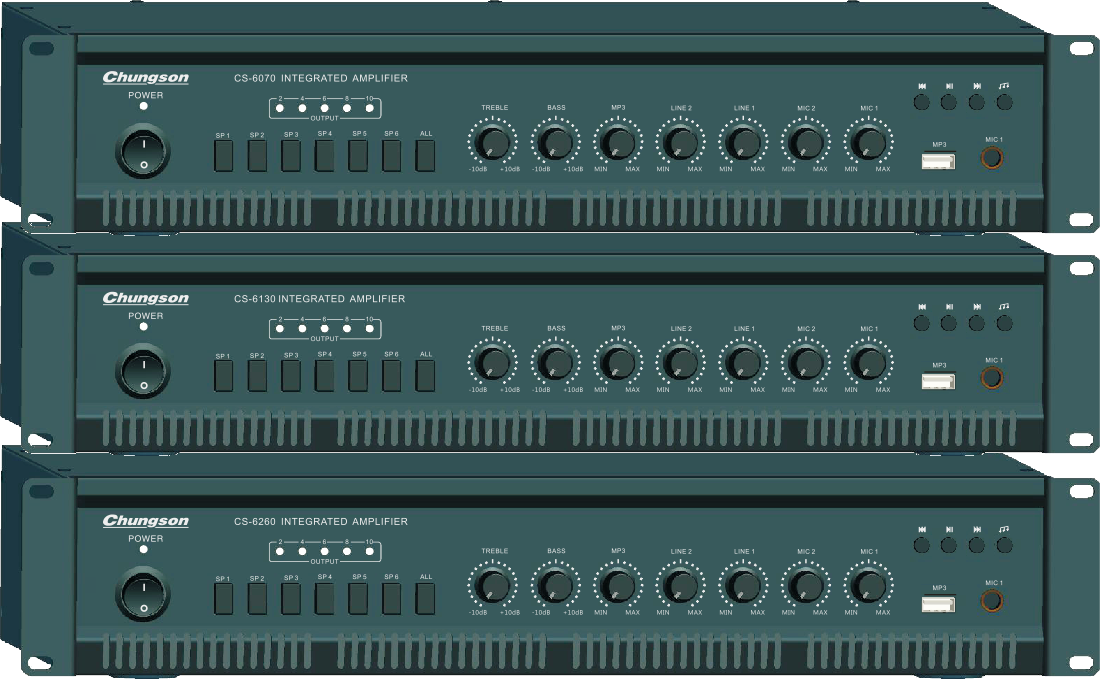

CS-6260 with six partitions, with MP3 combined amplifier
Share：
Description
Parameters
Features
Precautions
1 constant pressure output: provide 100V constant pressure output
2 multi-function adjustment: each channel independent volume adjustment, bass adjustment
3 Priority functions: Jingle-point and MIC1 have priority over other input channels
4 built-in MP3 player: insert the USB flash drive to play MP3 music, the panel with playback control keys
5 protection circuit system: provide overheating protection and built-in voice prompts for short circuit protection
6 cooling system: built-in temperature control fan, the temperature rose to 55 ℃ fan intelligent start
7 zone control: with 6 zone control and a zone control buttons
Output power 260W
Frequency response 80Hz-15KHz, ± 3dB
Enter MIC 4mV / 600Ω Balanced
LINE 500mV / 10KΩ Balanced
Constant pressure output 100V
Partition control 6 partitions, a single maximum 260W
Tone control BASS: ± 10dB ± 2dB (100HZ) TREBLE: ± 10dB ± 2dB (10KHZ)
Total harmonic distortion ≤ 1%
Signal to noise ratio ≥80 dB
Power AC 220V / 50Hz
AC power consumption 370W
Net weight 9kg
Gross weight 10kg
Body size 482 × 88 × 290mm
