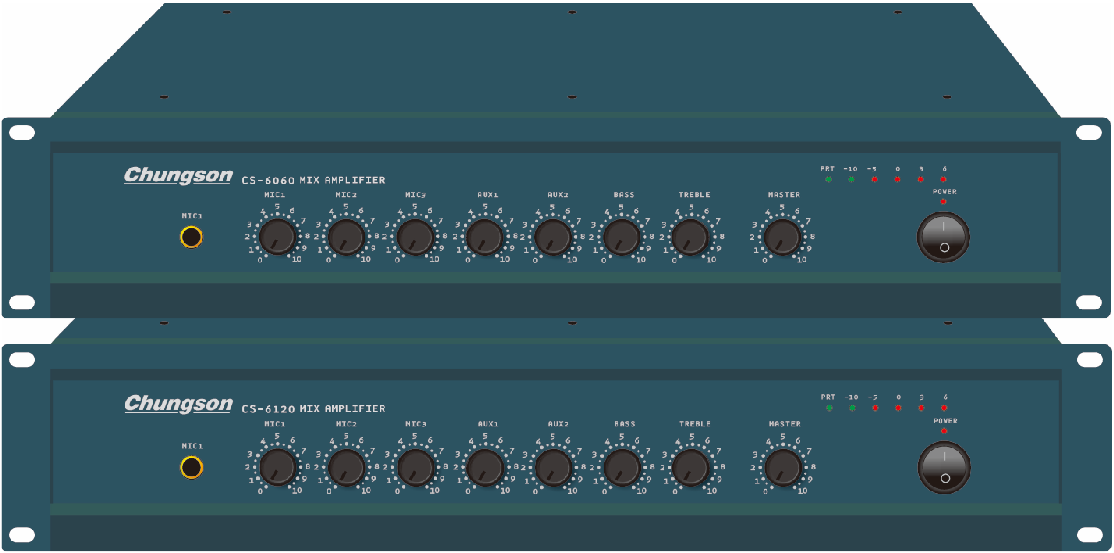

CS-6060 combined amplifier--Zhongshan Chungson Public Broadcasting Equipment Industry Co., Ltd.
1, respectively, set in the fixed resistance pressure output, so that this machine can be used for broadcasting systems, but also can be used to push professional audio.
2 professional floating power amplifier technology, the machine speed faster, can be used for all types of audio.
3 has a perfect over-voltage, over-current, short circuit, midpoint drift protection circuit.
4 multi-level adjustment cooling fan, high-speed, quiet to ensure good heat dissipation. MICI has priority function, can cut off the external sound source automatically when using.
5 excellent noise control.
6 High-strength 2U standard rack design for desktop and cabinet use.
Output power 70W
Fixed resistance output 20VRms / 8Ω
Frequency response 60HZ-20KHZ, ± 3dB
Distortion <0.2% (MIC input <0.25%) / 1KHZ / 10V fixed resistance output
Audio Control BASS: ± 15dB ± 2dB (100HZ) TREBLE ± 15dB ± 2dB (10KHZ)
LINE IN sensitivity 250mv / 1KHZ / 47KΩ
MIC sensitivity 5mv / 1KHZ / 10KΩ
Signal to noise ratio ≥ 75dB (A weighted)
Power 220V ~ 50HZ
Maximum power consumption 100W
Gross weight 9KG
Body size 485W * 320D * 90H (MM)
