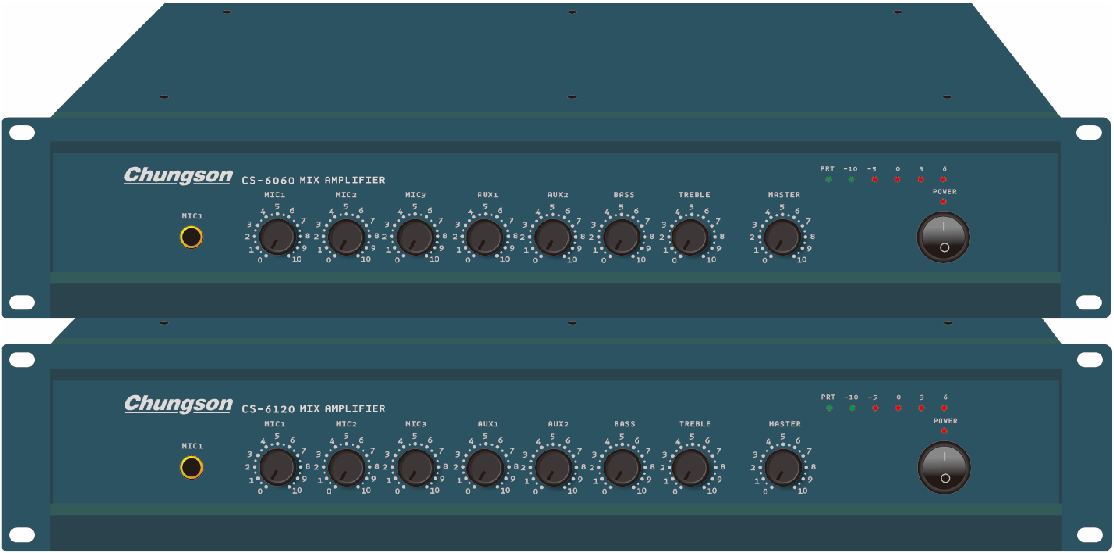

CS-6120 combined amplifier--Zhongshan Chungson Public Broadcasting Equipment Industry Co., Ltd.
1 respectively, set in the fixed resistance pressure output, so that this machine can be used for broadcasting systems, but also can be used to push professional audio.
2 professional floating power amplifier technology, the machine speed faster, can be used for all types of audio.
3 has a perfect over-voltage, over-current, short circuit, midpoint drift protection circuit.
4 multi-level adjustment cooling fan, high-speed, quiet to ensure good heat dissipation. MICI has priority function, can cut off the external sound source automatically when using.
5 excellent noise control.
6 High-strength 2U standard rack design for desktop and cabinet use.
Output power 130W
Constant resistance output 26VRms / 8Ω
Frequency response 60HZ-20KHZ, ± 3dB
Distortion <0.2% (MIC input <0.25%) / 1KHZ / 10V fixed resistance output
Audio Control BASS: ± 15dB ± 2dB (100HZ) TREBLE ± 15dB ± 2dB (10KHZ)
LINE IN sensitivity 250mv / 1KHZ / 47KΩ
MIC sensitivity 5mv / 1KHZ / 10KΩ
Signal to noise ratio ≥ 75dB (A weighted)
Power 220V ~ 50HZ
Maximum power consumption 200W
Gross weight 11KG
Body size 485W * 320D * 90H (MM)
