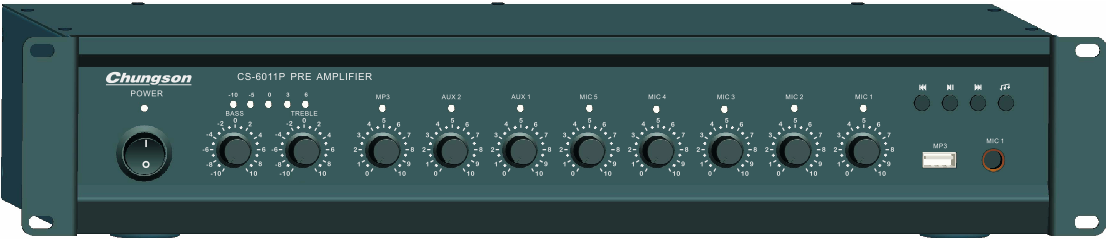

CS-6011P preamplifier--Zhongshan Chungson Public Broadcasting Equipment Industry Co., Ltd.
1, with ten input (5 microphone input, 2 emergency input, 2 line input, 1 MP3 input) and a group of unbalanced output, a group of balanced output
2, built-in MP3 source and prompt bell (1-3-5-i)
3, the volume of each input channel can be independently controlled, can be a unified treble and bass adjustments
4, each input channel independent level display, mixed output 5LED level display
5, with three priority design: MIC1 and built-in bell for the highest priority, emergency audio signal input (EMC) for the second level, MIC2-5, built-in MP3 audio and line input (AUX1, AUX2) for the third level
6, emergency audio signal input without volume adjustment, automatic mute
7, the machine can be used to connect the pure power amplifier
Input AUX: 10KΩ 250mV, MIC: 600Ω 4mV, EMC 10KΩ 250mV unbalanced
Output 1V balanced 1V unbalanced
Tone control BASS: ± 10dB at 100Hz TREBLE: ± 10Db at 10kHz
Frequency response 80Hz ~ 20KHz (± 3dB)
Total harmonic distortion ≦ 0.5%
Signal to noise ratio ≧ 70dB
Power AC220V / 50Hz,
Exchange power ≦ 20W
Net weight 4kg
Gross weight 5.25kg
Body size 482 × 88 × 320mm
