1. Multi-function input adjustment: provide 2 LINE, 2 microphone inputs, the total volume control with high, bass and output level indication and protection level indication.
2. Priority mute function: with priority input control. Priority: IP Network> MIC1> MIC2 / LINE1 / LINE2.
3.IP network control: When the IP network broadcast to provide a short circuit output control, a 220V / 50HZ power block output control.
4. Protection circuit: with output short circuit / overload protection from the recovery circuit, 100 degrees high temperature protection circuit.
5. Cooling circuit: import fan forced cooling from the boot to prevent premature aging of internal components due to high temperature.

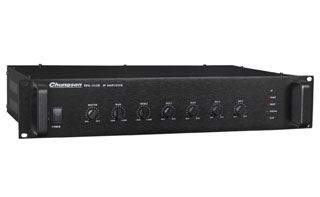

Model TPA-3130/3260/3380 TPA-3530/3680
Rated output power 130W / 260W /380W 530W / 680W
Constant pressure output 100V
Source Input LINE1 LINE2 500mV / 10KΩ Unbalanced MIC1 MIC2 4-10mV / 600Ω Unbalanced
Tone control BASS: ± 10dB at 100Hz, TREBLE: ± 10dB at 10KHz
Frequency response 80Hz-15KHz ± 3dB
IP network control port outputs a short circuit signal / a 220V / 50Hz power outlet
Total harmonic distortion ≤ 1%
Signal to noise ratio IP network, LINE1, LINE2 ≥ 80dB MIC1, MIC2 ≥ 70dB
Working power AC 220V / 50Hz
AC power consumption ≤ 200W / ≤400W / ≤590W ≤820W / ≤1100W
Body size 482x88x328mm 482x132x498mm
